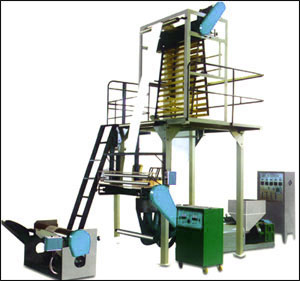

TBYS-500/800/1000/1200 Blown film machine series
This equipment production low density polyethylene and high density polyethylene and linear low density polyethylene plastic film, it is widely used in food, department stores, daily, chemical, textile, shopping vest bag and industrial packaging, this equipment for stove, screw is optimal 38 CrMoAi alloy material after nitriding process precision processing and become, has the best the abrasion resistance and corrosion resistance.
Technical parameters: Model TBYS-500 TBYS-800 TBYS-1000 TBYS-1200 Screw diameter 45mm 50mm 55mm 65mm Screw length-diameter ratio 28:1 28:1 28:1 28:1 LDPE blown film thickness 0.015-0.03mm 0.015-0.045mm 0.015-0.06mm 0.02-0.10mm HDPE 0.05-0.02mm 0.005-0.03mm 0.007-0.045mm 0.008-0.08mm Production capacity 8-25公斤/小时 12-30公斤/小时 18-40公斤/小时 20-70公斤/小时 Total power 18kw 21kw 30kw 40kw Envelop dimensions 3600×1400×3400mm 3600×1400×3500mm 4000×1600×3800mm 4500×1800×4800mm Total weight 1500kg 2000kg 2500kg 3300kg

Should the customer demand, but production host for kao line gear box and hard surface gears box. The winding for single rewinder and double rewinder two kinds. And at the same time according to the business needs to increase even mouth eighty percent even roll on a tripod. Customers in order to build.
